If you’ve ever needed a vacuum source in a place where electricity is limited—or simply wanted a compact, maintenance-free solution—you might have come across an air powered Venturi pump.
These ingenious devices harness compressed air to create suction, without any moving parts, motors, or complicated mechanics. They’re widely used in industrial automation, laboratory setups, CNC machining, woodworking, and even DIY projects.
This guide will break down what an air powered Venturi pump is, how it works, the different types available, where it’s used, how to choose one, and how to get the best performance. Whether you’re a factory engineer, a lab technician, or a weekend inventor, you’ll find plenty of practical insights here.
What is an Air Powered Venturi Pump?

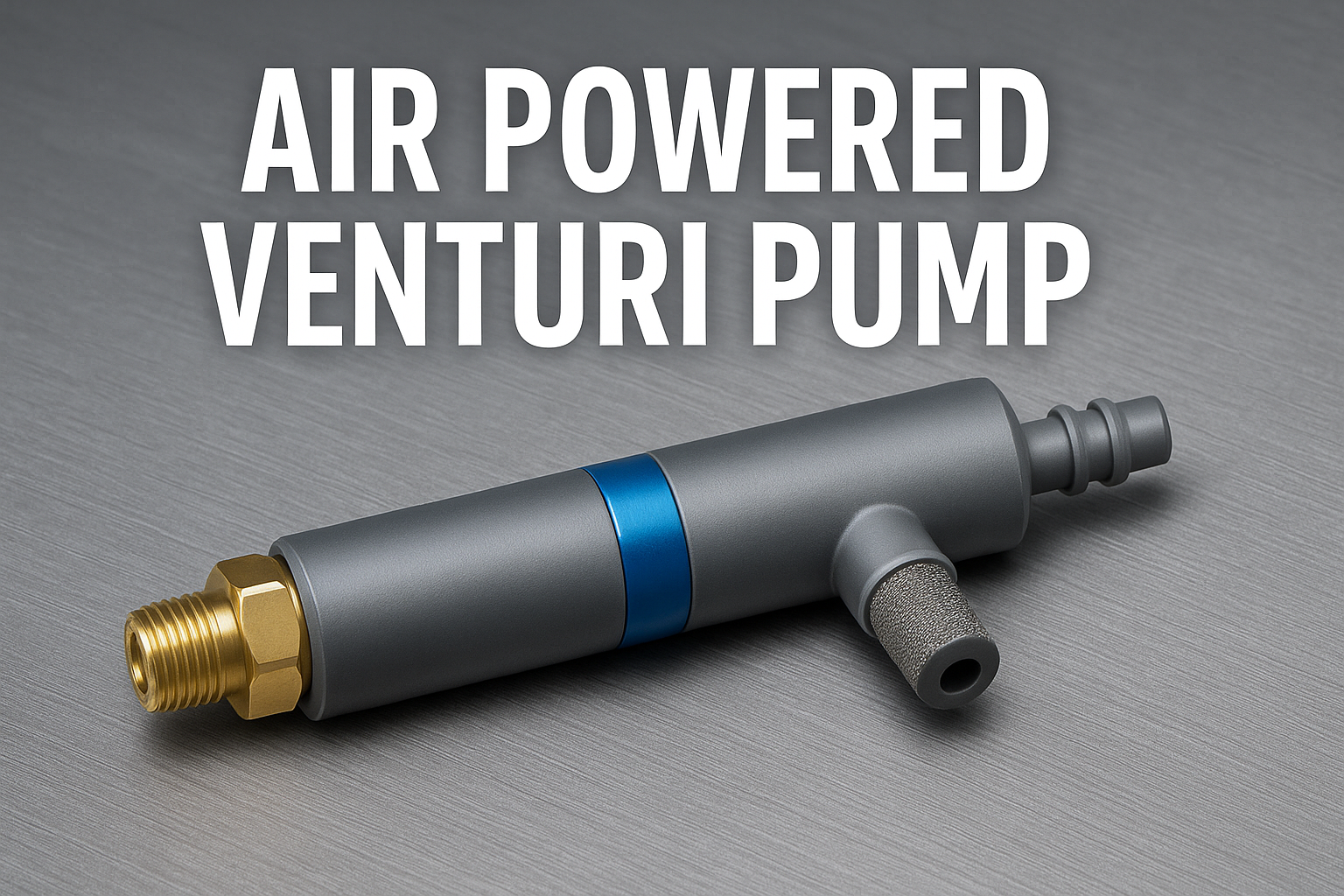

An air powered Venturi pump—sometimes called a Venturi vacuum generator—is a simple device that creates a vacuum using compressed air and the Venturi effect. Instead of an electric motor or mechanical pumping system, it uses the physics of fluid dynamics to generate suction.
The result? A compact, durable pump that can operate anywhere you have a source of compressed air.
The Science Behind It: How the Venturi Effect Works
At the heart of this technology is the Venturi effect—a principle first described by Giovanni Battista Venturi in the late 18th century.
Here’s the basic idea:
- Compressed air enters the pump through a narrow nozzle.
- As it passes through the restriction, the air speeds up dramatically.
- This increase in velocity causes the static pressure in the narrow section to drop.
- That low-pressure zone draws in surrounding air through a side port—creating suction.
- The compressed air and the entrained air exit together through the exhaust.
This method of creating a vacuum is sometimes referred to as pneumatic ejector vacuum generation.
Key Features That Make Venturi Pumps Popular
- No Moving Parts: Virtually nothing to wear out—making them long-lasting and reliable.
- Compact Size: Easily integrated into robotic arms, CNC fixtures, or portable tools.
- No Electricity Needed: Perfect for hazardous or remote locations.
- Instant On/Off: Vacuum is generated the moment air is applied and stops instantly when it’s shut off.
- Low Maintenance: Only basic air filtration is needed to prevent clogging.
Main Types of Air Powered Venturi Pumps
1. Single-Stage Venturi Pump
- Design: One nozzle and one expansion chamber.
- Pros: Simple, inexpensive, easy to install.
- Cons: Slightly less efficient for deeper vacuum levels.
- Best For: General-purpose pick-and-place systems, basic hold-down applications.
2. Multi-Stage Venturi Pump
- Design: Multiple nozzles in sequence, each boosting the vacuum level.
- Pros: Higher vacuum efficiency, lower air consumption per unit of vacuum.
- Cons: Slightly larger and more expensive.
- Best For: Continuous industrial use, deeper vacuum requirements.
3. Adjustable Venturi Pump
- Design: Built-in control to regulate air consumption and vacuum strength.
- Pros: Saves compressed air, customizable for different materials.
- Cons: More complex, slightly higher cost.
- Best For: Energy-conscious facilities, variable-load applications.
Where Air Powered Venturi Pumps Are Used
1. Industrial Automation
- Pick-and-Place Robotics: Attaching suction cups directly to a Venturi pump for gripping parts.
- Packaging Lines: Handling cartons, bags, and irregularly shaped items.
- Assembly Stations: Holding components in place for precision operations.
2. CNC Machining & Woodworking
- Vacuum Clamping: Holding workpieces securely without mechanical clamps.
- Dust Collection Assistance: Boosting suction in localized cleaning points.
3. Laboratory & Scientific Applications
- Vacuum Filtration: Filtering solutions quickly without electrical vacuum pumps.
- Gas Sampling: Drawing samples for analysis in hazardous locations.
4. Food Processing & Handling
- Sealed Bag Handling: Gripping vacuum-sealed products during packaging.
- Delicate Produce Handling: Moving fragile items without mechanical damage.
5. Emergency & Mobile Systems
- Field Repair Kits: Creating suction where no power supply exists.
- Portable Workstations: Mobile clamping or gripping tools.
Performance Specifications to Consider
- Vacuum Level
- Measured in inches of mercury (inHg) or kilopascals (kPa).
- Typical range: 20–29 inHg (-68 to -98 kPa).
- Air Consumption
- Measured in standard cubic feet per minute (SCFM) or liters per minute (L/min).
- Lower consumption = better energy efficiency.
- Response Time
- Time to reach full vacuum—critical for rapid cycling in automation.
- Noise Level
- Some models include built-in silencers; others require external mufflers.
- Material Construction
- Aluminum: Lightweight and durable.
- Stainless Steel: Corrosion-resistant for food or chemical use.
- Plastic/Composite: Lightweight, budget-friendly.
Choosing the Right Venturi Pump
Here’s a quick decision table:
| Need | Best Option |
|---|---|
| Low-cost general use | Single-stage aluminum |
| High efficiency | Multi-stage with air economizer |
| Corrosion resistance | Stainless steel body |
| Adjustable performance | Variable-nozzle model |
| Quiet operation | Built-in silencer design |
Installation Tips for Best Results
- Filter Your Air Supply: Use at least a 40–50 micron filter to avoid clogging.
- Check Air Pressure: Most models work best at 70–80 psi (4.8–5.5 bar).
- Mount Close to Point of Use: Shorter tubing means faster response and less loss.
- Use Silencers: Reduces noise and protects against debris entering the exhaust.
- Avoid Oversizing: Bigger isn’t always better—match vacuum output to your actual needs.
Maintenance Guide
- Inspect Filters Weekly: Replace or clean when clogged.
- Check for Leaks: Air leaks reduce efficiency and increase compressor load.
- Clean Exhaust Ports: Prevent buildup that could reduce flow.
- Monitor Performance: If vacuum response slows, check for dirt in the nozzle.
Pros & Cons at a Glance
Pros:
- Reliable and long-lasting
- Simple installation
- Operates without electricity
- Low maintenance
Cons:
- Requires constant compressed air supply
- Can be noisy without mufflers
- Higher operational cost if compressed air is expensive
Future Trends in Venturi Pump Technology
- Air-Saving Smart Controls: Automatically shut off air flow when target vacuum is reached.
- Compact Integrated Units: Pumps with built-in valves, sensors, and silencers.
- Advanced Materials: PTFE coatings for chemical resistance.
- IoT Connectivity: Real-time monitoring and predictive maintenance alerts.
Top Recommended Models for 2025
- Piab piINLINE® Plus: Multi-stage, ultra-efficient with energy-saving tech.
- Schmalz ECBPi: Compact, smart, and quiet for automation.
- Exair Adjustable E-Vac®: Allows fine-tuning of vacuum level.
- Coval LEMAX Series: Integrated vacuum and control system.
Conclusion
The air powered Venturi pump is one of the most versatile, durable, and low-maintenance vacuum solutions available. Whether you’re automating a production line, outfitting a mobile workshop, or experimenting in a lab, it offers instant vacuum with no moving parts—and no need for electricity.
By selecting the right type, installing it correctly, and maintaining clean air supply, you can count on a Venturi pump to deliver reliable suction for years.
